Hi everybody, I wanted to know if there is a way I can control the layer a block is in through the block table, so if I change a set of parameters through the table, one of them could be "Layer" and that way I can change it appereance. I want to avoid visibility parameters, as there are too many permutations of blocks for that. Thanks for the help in advance!

(Autocad 2015) Express Tools is loaded, the Express Tools menu is displayed. 97% or more of the Express Tools work just fine. Tools -> System Variables (SYSVDLG) does not work (Unknown Command) Is there a way to manually fix this short of the uninstall/reinstall?

Hi... I have a problem with the ObjectARX 2017 project creation on the Visual Studio 2015. I've downloaded the ObjectARX package from the Autodesk page and run it. It was unpacked in that folder: C:\Autodesk\Autodesk_ObjectARX_2017_Win_64_and_32_Bit. But there aren't any executable for the installation there. I've downloaded too a small utility called 'ObjectARXWizards', and run it. This programm ask me where is located the ObjectARX folder and AutoCAD folder, and after this, install the package. In that moment appear in the control panel appear in the VS2015, at the Visual C++ tab the Autodesk, with two options of ObjectARX project modelos: ObjectARX/DBX Project and ObjectARX/DBX/OMF Project. When I select any of these two project options, it give me a error like this: Creating project 'ArxProject1'... project creation failed. I did run the Visual Studio as administrator, from a user with administrator privilegies, with the UAC turned off and install using ObjectARX Wizard, but the project creation on the Visual Studio still not working. Always give me the same error. I really don't know what I need to do to work with. Anybody can help me?

Having an issue with one CAD file everytime it is opened. Need help with this error: "One or more objects in this drawing cannot be saved to the specified format. The operation was not completed and no file was created." Thanks, Chandra

Hi , is there any command to list the vertex of a multipolygon? Cause, when I have a polygon I can use (entget (car (entsel))) and recover its vertex. But how could I do this in a multipolygon? Thanks. #Autocad Civil 3D 2015.

Jimmy Bergmark from JTB World, has reported that the just released SP1 for AutoCAD 2017 breaks the functionality of the "plug-in auto loader mechanism". Please make note of this before installing SP1, which is currently only available via the Autodesk Desktop App. References below: Ref 1: AutoCAD 2017 Service Pack 1 and a word of warning Ref 2: AutoCAD 2017 Service Pack 1 is out but you probably don’t want to install it

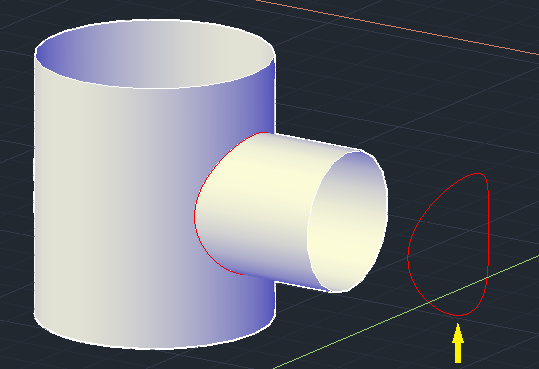

Hi I have used the Extract Intersections between two surfaces to get a complex line but I dont know how to give a thickness to it How can I give a thickness to make it a solid? Thank you

Hey guys, so I'm converting some IDWs to AutoCAD format, and when they go to open them dimensions are not showing up and some other things are jumbled about. I even opened them up in my AutoCAD and purged several times, and re saved them into DXFs and AutoCAD DWGs. Am I missing a step or something? What can I give them so they can just dimension it in their title block? STEP file?

Hello all you CAD Guru's out there! I am currently having trouble creating a lisp and am in desperate need of experienced guidance. I am trying to make a command such as (defun C:lo () (command "layer" "on" "*" "t" "*" "")) which turns all layers on, however i need the layers Circuit-1 through Circuit-12 to be untouched. For example if i have circuits 5 through 12 turned off, frozen, whatever state they may be in needs to not be affected by the command to turn all layers on. Basically I would like to make a command that turns all layers on with the exception of layers Circuit-1 through Circuit-12 I started to write a code based on layer groups which I though may be the way to accomplish this task. I.E. make a layer group of all layers EXCLUDING or removing Circuit 1-12 and thaw or turn on all of that layer group. I am unsuccessful in thawing the "new layer filter" using code. (I can however right click on the group and change its visibility to thawed and that works.) (defun c:TESTER (/) (COMMAND "-LAYER" "FILTER" "NEW" "GROUP" "" "*" "NEW LAYER FILTER" "") (COMMAND "-LAYER" "FILTER" "EDIT" "NEW LAYER FILTER" "DELETE" "CIRCUIT-1" "DELETE" "CIRCUIT-2" "DELETE" "CIRCUIT-3" "DELETE" "CIRCUIT-4" "DELETE" "CIRCUIT-5" "DELETE" "CIRCUIT-6" "DELETE" "CIRCUIT-7" "DELETE" "CIRCUIT-8" "DELETE" "CIRCUIT-9" "DELETE" "CIRCUIT-10" "DELETE" "CIRCUIT-11" "DELETE" "CIRCUIT-12" "") (command "-layer" "t" "new layer filter" "")) Where have I gone wrong?

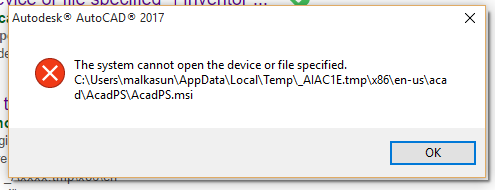

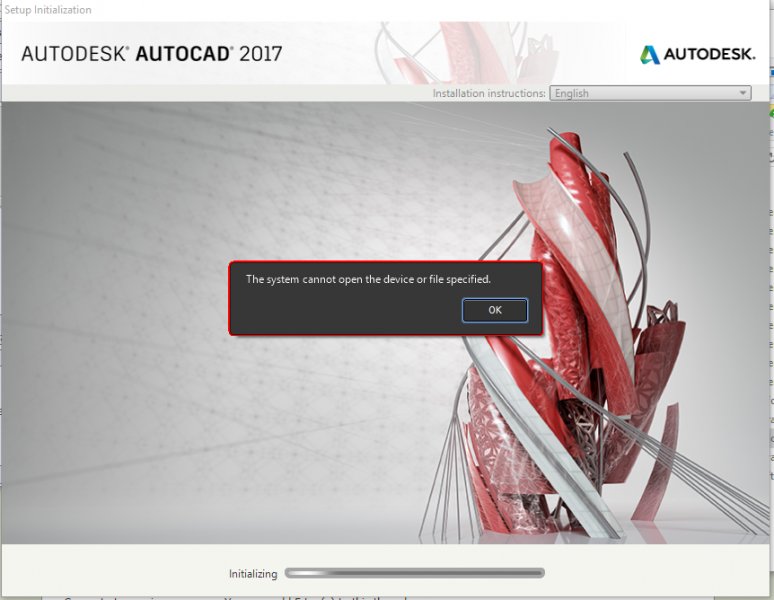

I try to install autocad 2017. can't install it. coming error. see attached screenshots pls help me

how to divide a polygon into 3 equal polygons (same area or we known area)? I wanted to divide the polygon shown in the screenshot below into equal 3 polygons (with same area), but I couldn't figure out if these is some commands or workflow to perform this issue is the "trial and error" is the only technique by which this issue can be done? thank you in advance, regards malkasun

Hello, i am using autocad 2017, and i need to create a countersink. I would like to know if it is possible in autocad 2017, i couldn't find the tools that would allow me to do so. I tried chamfering but it is not giving the desired results. The holes where i need countersinks are the holes in the middle. http://i.picpar.com/HoPb.png Do i need to acquire inventor or another autodesk program designed for this purpose. Thank you.

I'm working in millimeters and whenever I use the AREA command I end up with a large number. I want to know if you can customize the AREA command somehow to show meters squared automatically.

Here's the code originally written by David Forbus (Thank you btw). Any help will be appreciated in helping me to fix the hatch issue. Thanks. ;;; QUANTALL ;;; Written by David Forbus 09_dec_2008 ;;; QUANTALL prompts a user for a Quantize Value ;;; QUANTALL then prompts a user for a selection set and then ;;; modifies the INSERTION POINTS of TEXT, MTEXT, CIRCLES, BLOCKS, LINES and LWPOLYLINES within that selection set so they all "snap" to quantized coordinates. ;;; Modified by 3dwannab (get OSNAP settings) 14.06.02 (defun QUANTLN () (setq SP-X (/ (cadr (assoc 10 CURENT)) QUANT-VALUE )) (setq SP-Y (/ (caddr (assoc 10 CURENT)) QUANT-VALUE )) (setq SP-Z (/ (cadddr (assoc 10 CURENT)) QUANT-VALUE )) (setq EP-X (/ (cadr (assoc 11 CURENT)) QUANT-VALUE )) (setq EP-Y (/ (caddr (assoc 11 CURENT)) QUANT-VALUE )) (setq EP-Z (/ (cadddr (assoc 11 CURENT)) QUANT-VALUE )) (if (>= (- SP-X (fix SP-X)) 0.5) (setq SP-X (* QUANT-VALUE (+ 1.0 (fix SP-X)))) (setq SP-X (* QUANT-VALUE (fix SP-X)))) (if (>= (- SP-Y (fix SP-Y)) 0.5) (setq SP-Y (* QUANT-VALUE (+ 1.0 (fix SP-Y)))) (setq SP-Y (* QUANT-VALUE (fix SP-Y)))) (if (>= (- SP-Z (fix SP-Z)) 0.5) (setq SP-Z (* QUANT-VALUE (+ 1.0 (fix SP-Z)))) (setq SP-Z (* QUANT-VALUE (fix SP-Z)))) (if (>= (- EP-X (fix EP-X)) 0.5) (setq EP-X (* QUANT-VALUE (+ 1.0 (fix EP-X)))) (setq EP-X (* QUANT-VALUE (fix EP-X)))) (if (>= (- EP-Y (fix EP-Y)) 0.5) (setq EP-Y (* QUANT-VALUE (+ 1.0 (fix EP-Y)))) (setq EP-Y (* QUANT-VALUE (fix EP-Y)))) (if (>= (- EP-Z (fix EP-Z)) 0.5) (setq EP-Z (* QUANT-VALUE (+ 1.0 (fix EP-Z)))) (setq EP-Z (* QUANT-VALUE (fix EP-Z)))) (setq CURENT (subst (list 10 SP-X SP-Y SP-Z) (assoc 10 CURENT) CURENT )) (setq CURENT (subst (list 11 EP-X EP-Y EP-Z) (assoc 11 CURENT) CURENT )) (entmod CURENT) ) (defun QUANTPOLY () (setq COUNTER2 1) (setq POLY-NEW (list)) (while (< COUNTER2 (length CURENT)) (setq VRTX-PNT (nth COUNTER2 CURENT)) (if (= 10 (car VRTX-PNT)) (progn (setq SP-X (/ (cadr VRTX-PNT) QUANT-VALUE )) (setq SP-Y (/ (caddr VRTX-PNT) QUANT-VALUE )) (if (>= (- SP-X (fix SP-X)) 0.5) (setq SP-X (* QUANT-VALUE (+ 1.0 (fix SP-X)))) (setq SP-X (* QUANT-VALUE (fix SP-X)))) (if (>= (- SP-Y (fix SP-Y)) 0.5) (setq SP-Y (* QUANT-VALUE (+ 1.0 (fix SP-Y)))) (setq SP-Y (* QUANT-VALUE (fix SP-Y)))) (setq POLY-NEW (append POLY-NEW (list (list 10 SP-X SP-Y))))) (if (= 330 (car VRTX-PNT)) nil (if (= 5 (car VRTX-PNT)) nil (setq POLY-NEW (append POLY-NEW (list VRTX-PNT)))) ) ) (setq COUNTER2 (+ COUNTER2 1)) ) (entmake POLY-NEW) (entdel CURENT-NAME) ) (defun QUANTREG () (setq SP-X (/ (cadr (assoc 10 CURENT)) QUANT-VALUE )) (setq SP-Y (/ (caddr (assoc 10 CURENT)) QUANT-VALUE )) (setq SP-Z (/ (cadddr (assoc 10 CURENT)) QUANT-VALUE )) (if (>= (- SP-X (fix SP-X)) 0.5) (setq SP-X (* QUANT-VALUE (+ 1.0 (fix SP-X)))) (setq SP-X (* QUANT-VALUE (fix SP-X)))) (if (>= (- SP-Y (fix SP-Y)) 0.5) (setq SP-Y (* QUANT-VALUE (+ 1.0 (fix SP-Y)))) (setq SP-Y (* QUANT-VALUE (fix SP-Y)))) (if (>= (- SP-Z (fix SP-Z)) 0.5) (setq SP-Z (* QUANT-VALUE (+ 1.0 (fix SP-Z)))) (setq SP-Z (* QUANT-VALUE (fix SP-Z)))) (setq CURENT (subst (list 10 SP-X SP-Y SP-Z) (assoc 10 CURENT) CURENT )) (entmod CURENT) ) (defun QUANTXT () (setq TXT-HORZ (cdr (assoc 72 CURENT))) (setq TXT-VERT (cdr (assoc 73 CURENT))) (if (= TXT-HORZ 0) (if (= TXT-VERT 0) (progn (setq SP-X (/ (cadr (assoc 10 CURENT)) QUANT-VALUE )) (setq SP-Y (/ (caddr (assoc 10 CURENT)) QUANT-VALUE )) (setq SP-Z (/ (cadddr (assoc 10 CURENT)) QUANT-VALUE )) (if (>= (- SP-X (fix SP-X)) 0.5) (setq SP-X (* QUANT-VALUE (+ 1.0 (fix SP-X)))) (setq SP-X (* QUANT-VALUE (fix SP-X)))) (if (>= (- SP-Y (fix SP-Y)) 0.5) (setq SP-Y (* QUANT-VALUE (+ 1.0 (fix SP-Y)))) (setq SP-Y (* QUANT-VALUE (fix SP-Y)))) (if (>= (- SP-Z (fix SP-Z)) 0.5) (setq SP-Z (* QUANT-VALUE (+ 1.0 (fix SP-Z)))) (setq SP-Z (* QUANT-VALUE (fix SP-Z)))) (setq CURENT (subst (list 10 SP-X SP-Y SP-Z) (assoc 10 CURENT) CURENT )) ) (progn (setq SP-X (/ (cadr (assoc 11 CURENT)) QUANT-VALUE )) (setq SP-Y (/ (caddr (assoc 11 CURENT)) QUANT-VALUE )) (setq SP-Z (/ (cadddr (assoc 11 CURENT)) QUANT-VALUE )) (if (>= (- SP-X (fix SP-X)) 0.5) (setq SP-X (* QUANT-VALUE (+ 1.0 (fix SP-X)))) (setq SP-X (* QUANT-VALUE (fix SP-X)))) (if (>= (- SP-Y (fix SP-Y)) 0.5) (setq SP-Y (* QUANT-VALUE (+ 1.0 (fix SP-Y)))) (setq SP-Y (* QUANT-VALUE (fix SP-Y)))) (if (>= (- SP-Z (fix SP-Z)) 0.5) (setq SP-Z (* QUANT-VALUE (+ 1.0 (fix SP-Z)))) (setq SP-Z (* QUANT-VALUE (fix SP-Z)))) (setq CURENT (subst (list 11 SP-X SP-Y SP-Z) (assoc 11 CURENT) CURENT )) ) ) (progn (setq SP-X (/ (cadr (assoc 11 CURENT)) QUANT-VALUE )) (setq SP-Y (/ (caddr (assoc 11 CURENT)) QUANT-VALUE )) (setq SP-Z (/ (cadddr (assoc 11 CURENT)) QUANT-VALUE )) (if (>= (- SP-X (fix SP-X)) 0.5) (setq SP-X (* QUANT-VALUE (+ 1.0 (fix SP-X)))) (setq SP-X (* QUANT-VALUE (fix SP-X)))) (if (>= (- SP-Y (fix SP-Y)) 0.5) (setq SP-Y (* QUANT-VALUE (+ 1.0 (fix SP-Y)))) (setq SP-Y (* QUANT-VALUE (fix SP-Y)))) (if (>= (- SP-Z (fix SP-Z)) 0.5) (setq SP-Z (* QUANT-VALUE (+ 1.0 (fix SP-Z)))) (setq SP-Z (* QUANT-VALUE (fix SP-Z)))) (setq CURENT (subst (list 11 SP-X SP-Y SP-Z) (assoc 11 CURENT) CURENT )) )) (entmod CURENT) ) (defun QUANTARC () (setq SP-X (/ (cadr (assoc 10 CURENT)) QUANT-VALUE )) (setq SP-Y (/ (caddr (assoc 10 CURENT)) QUANT-VALUE )) (setq SP-Z (/ (cadddr (assoc 10 CURENT)) QUANT-VALUE )) (if (>= (- SP-X (fix SP-X)) 0.5) (setq SP-X (* QUANT-VALUE (+ 1.0 (fix SP-X)))) (setq SP-X (* QUANT-VALUE (fix SP-X)))) (if (>= (- SP-Y (fix SP-Y)) 0.5) (setq SP-Y (* QUANT-VALUE (+ 1.0 (fix SP-Y)))) (setq SP-Y (* QUANT-VALUE (fix SP-Y)))) (if (>= (- SP-Z (fix SP-Z)) 0.5) (setq SP-Z (* QUANT-VALUE (+ 1.0 (fix SP-Z)))) (setq SP-Z (* QUANT-VALUE (fix SP-Z)))) (setq CURENT (subst (list 10 SP-X SP-Y SP-Z) (assoc 10 CURENT) CURENT )) (setq RAD-R (/ (cdr (assoc 40 CURENT)) QUANT-VALUE )) (if (>= (- RAD-R (fix RAD-R)) 0.5) (setq RAD-R (* QUANT-VALUE (+ 1.0 (fix RAD-R)))) (setq RAD-R (* QUANT-VALUE (fix RAD-R)))) (setq CURENT (subst (cons 40 RAD-R) (assoc 40 CURENT) CURENT )) (entmod CURENT) ) (defun c:Fix_Quantize_All ( / osnap ) ;;3dwannab fix (setvar "cmdecho" 0) (setq OSNAP (getvar "osmode")) ;;3dwannab fix (setvar "osmode" 0) (setq QUANT-VALUE (getreal "\nEnter Quantize Value: ")) (setq SELECT-SET (ssget)) (setq COUNTER0 (1- (sslength SELECT-SET ))) (while (> COUNTER0 -1.0) (setq CURENT (entget (ssname SELECT-SET COUNTER0))) (setq CURENT-NAME (ssname SELECT-SET COUNTER0)) (if (= (cdr (assoc 0 CURENT)) "LINE") (QUANTLN)) (if (= (cdr (assoc 0 CURENT)) "TEXT") (QUANTXT)) (if (= (cdr (assoc 0 CURENT)) "MTEXT") (QUANTREG)) (if (= (cdr (assoc 0 CURENT)) "INSERT") (QUANTREG)) (if (= (cdr (assoc 0 CURENT)) "CIRCLE") (QUANTREG)) (if (= (cdr (assoc 0 CURENT)) "ARC") (QUANTARC)) (if (= (cdr (assoc 0 CURENT)) "LWPOLYLINE") (QUANTPOLY)) (setq COUNTER0 (1- COUNTER0)) ) (princ) (setvar "osmode" OSNAP) ) (princ "\nType \"Fix_Quantize_All\" to Quantize the INSERTION POINTS of TEXT, MTEXT, CIRCLES, ARCs, BLOCKS, LINES and LWPOLYLINES to the round off value.")

Using Civil 3D 2016 and having Intermittent Problems with not being able to remove items from the selection set. Anyone else having this problem? Terry Nolan www.FloridaDraftingServices.com www.1stProto.com 1stProto Design Services

I am gobsmacked that Autodesk have the cheek to require customers to pay a sum on top of the subscription fee for obtaining an update in their software. Subscription licenses are costing organisations thousands of pounds annually, but still ask for more money to obtain the software! The installers are now in the 10's of Gb's. Surely from a customer relations exercise, it makes sense to swallow the cost of the media & postage?

Hi there I am looking for some kind of lisp to import points or 3d polyline along with a reference line. I am attaching reference files for study. thanks Bridge Plan.dwg Profile Data.csv

Hi Everybody, Via the command area it is possible to retrieve the surface area of a solid body (Acad3DSolid). Unfortunately the area it is not a property of a solid body so I'm haveing difficulties retrieving the surface area (which I want to write to an excel file). I've tried to explode the solid which results in several regions and surfaces. Unfortunately only the regions have an area; the (curved) surfaces don't. Anybody suggestions how to get the area of some solids useing VBA? Looking forward to the suggestions!

Hi I have been having this issue with several versions of Autocad. At some point the application will start showing a lagging behavior when entering and existing commands. It completely blows my concentration and the productive flow away. I have researched quite a lot on the net, and tried all the usual suspects: Disabling all CPU consuming features (cycle, dynamic inputs, properties palette, visual effects, etc). I have de-activated all the 3d performance settings. Disable "enable desktop composition" in Windows. All my graphic drivers are up to date. But nothing seems to work and the frustration start to be quite annoying. Anyone managed to find a solution for this? Your help will be super appreciated! I am running AutocadCAD 2013 in W7 (64bits) Ras

Hello everyone, So I work in a cabinet shop as a drafter. I am trying to save time drawing our shop drawings using dynamic blocks. I have been trying all morning and researching through forums with no luck. I have simple 3/4" MDF slab doors and I need a block that can divide the doors between 10" to 20" equal widths with 1/8" space between the doors. In essence I will need 2 blocks, one for the plan section and one for the elevation, the same concept applies. Previously I would use the divide command after subtracting all 1/8" reveals to manually get equal doors. I will greatly appreciate if someone can help me and ease the process. Please see attachment to see what I am trying to resolve. Thank you,Auto Cabinet Door Division.dwg

Dear smarties I read a few articles here and there regarding a way to generate multiple drawings from an excel file, but no one had explained step by step on how to do it. So, I am lost half way. I am very new to this kind of things, but I will try to follow, so please go slow on me. here is what I want to fix: 1. I need to automatically generate 10 drawings both in dwg and pdf copied into a folder. 2. All the variables (VAR1 to VAR3) are stored in an excel file. refer to the attached files as an example. 3. I only need to create one original drawing, which will be used to generate all the 10 drawings. Please help EXCEL-VAR.xls ORIGINAL-DWG.dwg

I have a awning window in front elevation that i want to stretch horizontally and vertically , im having trouble getting the triangle to stay in the middle when i stretch horizontally. Can someone help me :) attachment below : Window.dwg

Hello Folks! Having problems with the UCS at the moment. I have rotated my drawings with the UCS command and used the plan command to set the drawings in the angle i want to view them in. And then used world to get the co-ordinate system true to its original state. The problem is when i am trying to attach the drawings together, they are in different places. Do you guys have any clues? (Sorry for my bad english) /Per-Anton

Hi guys, Is it possible to specify zoom factor that will show on my monitor same size as will printed on paper? For example: i'm making drawing in 1:100 scale in milimeters, and before printing it i want to make sure that everything is readable. I know that depands on screen resolution, dpi and pixel size.
