From: AutoCAD Productivity Articles #136
Originally published: October 2014

‘Sign Language’

by Michael Beall

Infer ConstraintsSelection CyclingFor the last few versions we have seen icons next to the cursor for Geometric Constraints (left) and Selection Cycling (right), as well as the little icon for a Locked layer and the Match Properties paintbrush.

Those icons are displayed when the related feature is enabled.

Cursor Badges

But AutoCAD 2015 now has included a ‘cursor badge’ for several editing commands, such as Rotate and Erase (see figures below), along with Measure and even the Window and Crossing selection direction badges.

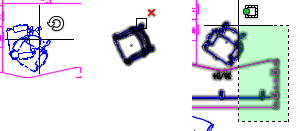

Badge examples

Some of you, however, may prefer not to see the new badges beside the cursor. If so, set the variable CURSORBADGE to <1>, which will disable all badges.

See all the articles published in October 2014

See this article in the October 2014 Corner
