Adding Another Row to a Panel on the Ribbon

The Draw PanelIt's time to take our Ribbon customization up a notch, so I figured we could customize a panel to have more than just a single string of commands. This question came up in my recent training at ethos in Phoenix as we were heading to lunch. I hadn't really investigated it before, but the three of us figured it out, so I wanted to pass it along.

Before you begin, you may want to review the fundamentals of adding a tab and a panel to the Ribbon that was covered in Michael's Corner in August 2009.

To understand what we're aiming for, on the Draw panel [Home tab] you see a large icon for the Line command, then three additional rows of more commands. How do they do that? The three rows are called ‘Sub-panels’, and here's how it works.

How to Edit the Appearance of the Tools on Your Tab

Partial Customization Files
  1. Open the CUI.

  2. Expand Partial Customization Files, expand CUSTOM, expand Ribbon, then expand Panel. In this exercise, I have a Tab named My Workbench and a Panel named MC_Custom. (The Cool Tools panel is what I developed in the exercises in The AutoCAD Workbench.)

  3. Click on the first tool in Row 1 of your custom panel (in this exercise, ‘3D Adjust Clip Plane’) to display the Properties pane on the right.

  4. Under Appearance, click the Button Style item, then click the dropdown to display the four options.

  5. Click Large with Text (Vertical); this is the style used by the Line command on the Draw panel.

    Button Style
  6. To add a ‘stack’ of tools to your customized panel, right-click on Row 1, then click New Sub-Panel and you will see Sub-Panel 1 with an unnamed node below it. That's the first row of that Sub-Panel.

  7. Drag a command up from the Command list and release it next to the unnamed node below Sub-Panel 1.

  8. Right-click on Sub-Panel 1, then click New Row (not Sub-Panel) to create another unnamed node.

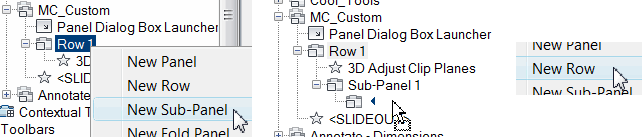

    Adding a new sub-panel

    Note: Curiously, the nodes below a Sub-panel are not numbered ‘Row 1’, ‘Row 2’, etc. until after you have closed and saved the CUI, then re-opened it.

  9. Drag the panelAdd another tool to the unnamed node under the Sub-Panel. Repeat as needed.

  10. Finally, drag your panel up and release it beside your custom tab.

    Note: If you are editing a panel that is already associated with a tab, you do not need to re-assign it to that tab.

  11. Click OK to close and save your edits to the CUI, then click your new tab to see the arrangement!

Gold Star Tip: For your reference, the two figures here are my custom Panel and the CUI that drives it.

The final panel

Top of page

Power Tool

PDF Underlay Layers

DWG to PDFIf you have Adobe Acrobat or other Adobe products, you probably have an Adobe printer driver that enables you to print a .PDF from the AutoCAD Plot dialog box.

Adobe Reader

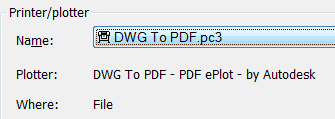

Did you know, however, that if you use the Autodesk driver - DWG To PDF.pc3 - the Adobe Reader built in to AutoCAD will immediately open and you will be able to toggle on and off layers?

Give it a try next time you need to print to a .PDF.

Edit LayersEdit Layers dialogNote: See Michael's Corner January 2010 to learn how to attach a PDF Underlay to a drawing. When you click on the attached .PDF, click the Edit Layers button on the context tab to open the Underlay Layers dialog box.

In addition to the ability to turn layers on and off in the underlain .PDF, you can also specify search criteria for the layer name. Nice.

Top of page

The Odd Spot

Tab Through Commands and Variables

Enter the first few characters of a command or variable, then hit Tab to cycle through the commands and variables that start with those letters. In AutoCAD 2010 and AutoCAD 2011, enter RO, then hit Tab repeatedly and you will see the following string of commands and variables: ROAMABLEROOTPREFIX, ROLLOVERTIPS, ROTATE, ROTATE3D.

Gold Star Tip: Any command aliases you have added to ACAD.PGP are also listed as you Tab through!

Top of page

The Basics

How to Create and Insert a Block

Block PanelA block is, essentially, a symbol. Something you want to repeat. The Block panel on the Home tab contains the Create tool which will open the Block Definition dialog box.

The following exercise take you through the block-making basics after creating the geometry for a data and communications symbol. If you have already drawn something you want to turn into a block, go straight to Step 9, below.

How to Create a Block for a Data/Communications Symbol

  1. Create a new layer named Electrical, give it a color, then set it to be current.

  2. Click Polygon [Home tabexpanded Draw panel].

  3. For the number of sides, enter 3, then pick a point to specify the center of the polygon.

  4. Press [Enter] to accept the default option for Inscribed <I>, then, with ORTHO On, move your cursor north, and enter 6 for the radius of the circle.

  5. Click Line [Home tabDraw panel], then use Endpoint snap and pick the top of the triangle as the Start point.

  6. Use Shift + right-click, then click Perpendicular and click the bottom line of the triangle, then press [Enter] to end the command.

    Perpendicular
  7. Launch the Hatch command and set the Type to Solid.

  8. Move into one half of the triangle, and when you see the preview, click to place the hatch. Press [Enter] to end the command.

  9. Click Make Block to open the Block Definition dialog box.

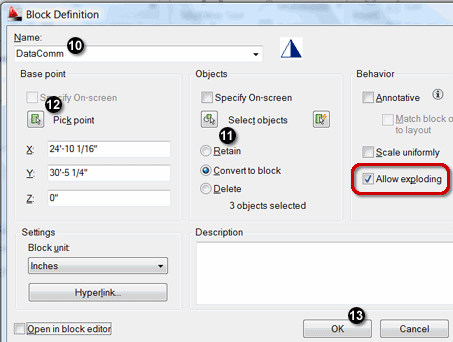

    Make Block dialog box
  10. Enter a name for the block. In this exercise, I'll name it DataComm.

  11. Click Select Objects, then select the geometry for the block and press [Enter].

  12. For the Base Point of the block, click Pick Point and specify a point on the block that will essentially be the ‘handle’ you will use to insert the block. In this exercise I'm using Endpoint snap to specify the top of the triangle.

    Note: Always ‘Allow Exploding’.

  13. Click OK to complete the block-making procedure.

The Insert Command

InsertAlthough the Tool Palette is the optimum feature for inserting blocks, using the Insert command [Insert tabBlock panel], you can insert a block that's already defined in the drawing.

Note: When inserting a block, make sure you have the proper layer current for it to ‘land’ on.

In the following exercise, you insert a sample drawing into a blank drawing.

How to Insert a Block

  1. Click Insert [Insert tabBlock panel] to open the Insert dialog box.

  2. If the name of the block is not displayed in the name field, click the dropdown arrow and select your block.

  3. The default settings to specify the Insertion point and the Rotation on-screen is usually adequate for most procedures.

  4. Click OK to close the Insert dialog box and you will be prompted for the insertion point and the rotation for the block.

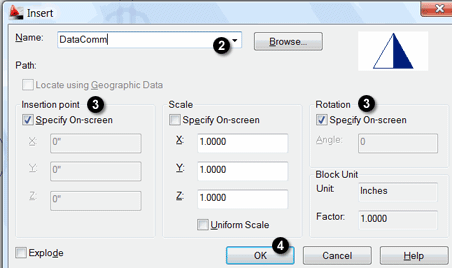

The Insert dialog box

Note: To insert a .DWG, click Browse, to open the Select File dialog box.
