Michael BeallFrom: AutoCAD Productivity Articles #141
Originally published: August 2015

Avoid Using ‘Standard’ in Text & Dimension Styles

by Michael Beall

In addition to Layer 0, every single drawing on the planet has a Text style called ‘Standard’, and a Dimension style called ‘Standard’. They're the defaults.

When developing company standards, it's best to not modify the Standard styles; leave 'em alone and make your own.

And here's why. Let's say you have text you added to Drawing A (using your modified ‘Standard’ text style to use the Trebuchet font), and you drag that text into Drawing B where the Standard text style uses the TXT.SHX font.

Since Drawing B already has a ‘Standard’ text style—see opening sentence, above—who do you think will "win" when it comes to how the text looks? The text in Drawing B will use the font which is already assigned to the Standard text style.

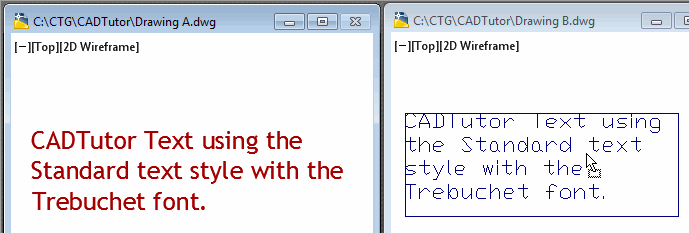

Copying text from one drawing to another

In the illustration, you see the result when I drag the text from Drawing A into Drawing B. Questions?
