Fun at the CAD Beach

by Michael Beall

If you take a look at a cross-section of AutoCAD users, there's probably a sizable slice of that pie chart that includes ‘DIY’—Do-It-Yourself, i.e., Customizers. Whether you're making sandcastles at the beach on a hot August day, or working your way to the weekend when you can come up with something new on the grill, you like to do your own thing.

So whether you're just returning from a four week western United States vacation (like our intrepid captain Professor Watson), or you're just looking forward to 5:00, when you get back to the AutoCAD Beach, did you know that you could:

…Create a custom Ortho angle?
…Add your own ‘AutoCorrect’ text for when you type commands and variables?
…Display your favorite toolbar(s) and still have the Ribbon?
…Toggle the visibility of layers in a PDF?

Hope you all have a wonderful August!

If you would like to contact me directly, you can do that also.

Blessings to one and all,
Michael

Customize your Ortho with SNAPANG

If you want to draw something other than Orthogonal, one approach would be to use an incremental angle from the collection under the Polar button on the Status bar. "Back in the day", however, some of you/us would set a value for the SNAPANG (Snap Angle) variable.

And if you don't know about it, and open a drawing where it's something other than 0, it will mess with your head.

Bottom line: SNAPANG acts as a custom Ortho for whatever angle you want to "ortho-fy".

SNAPANG in action

Insights

  1. Type SNAPANG, then enter a value. To disable it, enter 0.

  2. The crosshairs are not ‘square’, but oriented to the value of the SNAPANG.

  3. Notice in the images, the UCS is still set to <World>, indicated by the small square at 0,0,0.

  4. Regardless of the orientation of the UCS, the SNAPANG value is measured from the current 0 angle (X axis orientation).

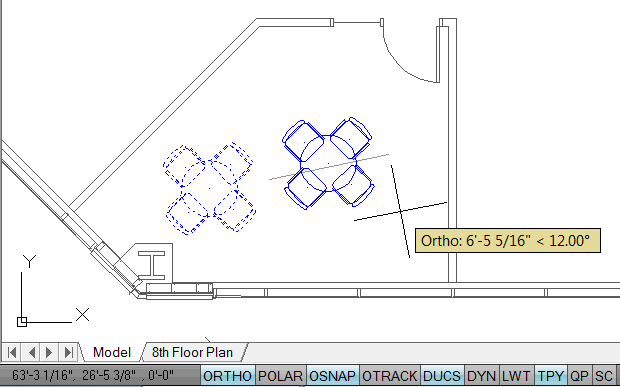

  5. When Ortho is On, the movement of the cursor is aligned with the value of the SNAPANG, as seen in the first figure.

  6. The tooltip displays the SNAPANG value when Ortho is On.

  7. When Ortho is Off, there are no restrictions to cursor movement when creating or editing.

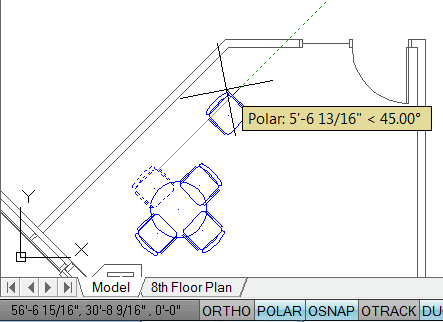

  8. By default, when Polar is On, Ortho is Off. Therefore, Polar values are used in creating and editing, as shown in the second figure.

    POLAR in action

Top of page

Power Tool

Edit the AutoCorrect Listing

Edit AutoCorrect ListIf you're an AutoCAD ‘Keyboard Artist’, you may have identified those commands/variables that you frequently mistype at the Command line.

Not to be confused with Spellcheck for text objects—Dtext and Mtext—there's an AutoCorrect .PGP file where you can add your corrections. And it's identical to the manner in which you would add a command alias (covered over 7 years ago in February 2006… and it hasn't changed one bit).

How to Edit the AutoCorrect .PGP File

  1. On the Manage tabCustomization panel, expand the ‘Edit’ button, then click Edit AutoCorrect List to open the Notepad file for the .PGP.

  2. Similar to creating an alias in the ACAD.PGP file, use the following comma and asterisk syntax for your correction where your mistake is first, then the correction:

    PICKFRIST,	*PICKFIRST
  3. That .PGP file is read when AutoCAD launches, but since you, essentially, went behind its back to make your edit, type REINIT to open the Re-Initialization dialog box.

    Re-initialization

  4. Check the box for PGP File, then click OK.

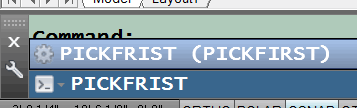

  5. Now enter your mistake and—if your AutoComplete is enabled—you will see the correction in parentheses!

    AutoCorrected result

Yes, you could simply put everything you ever type into the ACAD.PGP file, but it's nice to have a backup.

And now I'm thinking this may just have to be a Gold Star Tip in my Autodesk University seminar, AC1495-L—Click My Ride: Customizing Autodesk® AutoCAD® for How You Work.

Top of page

The Odd Spot

Toolbars with the Ribbon

The Ribbon is here to stay. Period. And although you can revert back to the AutoCAD Classic workspace, I try to discourage that… however. I understand the attachment to some toolbar ‘Faves’. A common request I have is for the Object Snap collection.

File Tabs and Toolbars

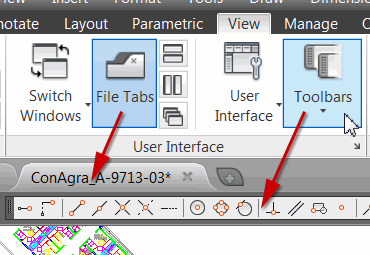

When the Ribbon was first introduced, accessing toolbars was virtually impossible. Over the last few versions, access to the toolbar collection [View tabUser Interface panel] is much easier. And in AutoCAD 2014, you can easily toggle the visibility of the new File Tabs interface!

Top of page

The Basics

Plotting a .DWG to .PDF

Printer/plotterThere is a vast array of PDF drivers for AutoCAD, but for my money (free!), the best option is the one available in the device listing by default, DWG To PDF.pc3.

The reason it's better than any other option, is because when the resulting PDF is viewed in either Adobe Acrobat, or Adobe Acrobat Reader, you see a list of Layer names, with a creepy little eyeball icon to toggle On/Off their visibility!

Note: Only layers that are visible at the time the drawing is plotted to PDF will be listed.

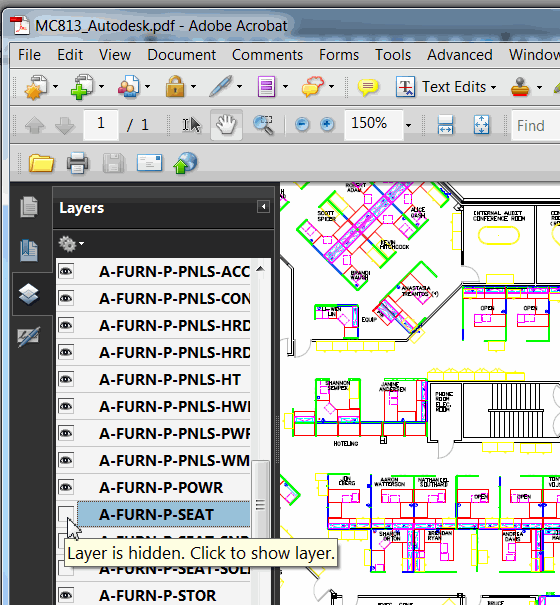

Turning layers off and on in the PDF

So if you have that co-worker/associate that "needs to see your drawing", send them a PDF where they can turn the layers on and off themselves!
