Split Views in Model Space

Selecting viewport configurationBack in TILEMODE <1> days (that would be pre-AutoCAD 200x for those of you just beginning with AutoCAD in this century), the splitting of Model space was commonplace for both 2D and 3D applications.

Power Tip: Yes, the TILEMODE variable is still around, so if you want to create a macro to flip over to a Layout, there's your answer!

Although I have written about this already—in December 2007 in a 3D application on a Layout, then a few years ago, in March 2009 (after I had just returned from training Chevron in Angola, West Africa)—I thought it was worth repeating.

In my recent training for the furniture manufacturer, inscape, I used the Viewport feature in Model space edit a 3D block. A recent addition to AutoCAD is the panel called Model Viewports.

How to Setup a Split Screen in Model Space

  1. Open a drawing containing 3D objects and position your eyeball/view as necessary.

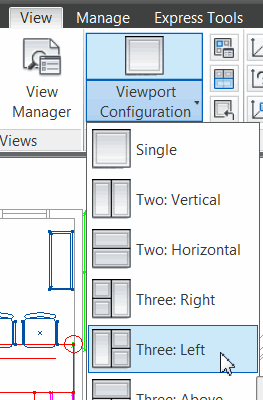

  2. On the View tab, click the Viewport Configuration dropdown to display the available arrangements.

  3. Click Three: Left.

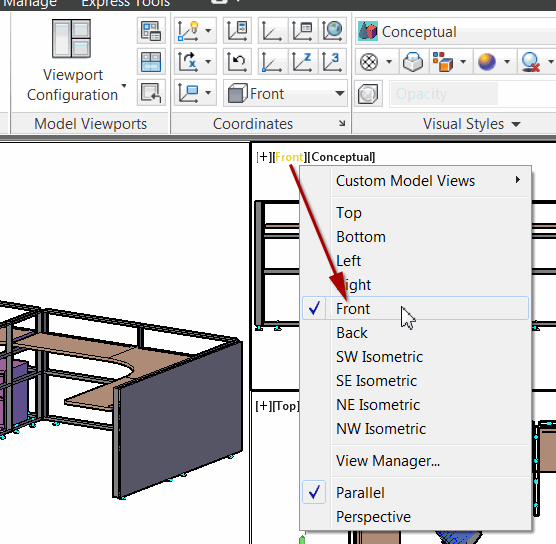

  4. Notice each view has its own Viewport Controls (covered in January 2012), so you can set a view for each viewport.

    Front view

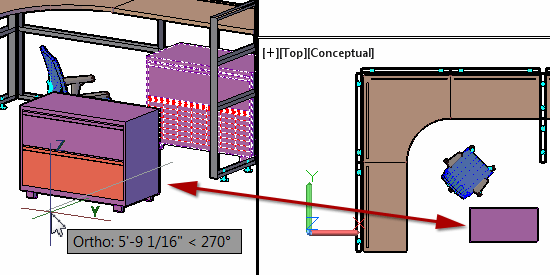

  5. It's particularly helpful to see the edit occur in all views at the same time, too.

    Objects seen in different views

Top of page

Power Tool

Crosshair Color on the Layout Tab

White crosshairFor purposes of clarity, I keep Model space black and the Layout tabs white. However, some folks like to have a black Layout tab, but that leaves the area beyond the ‘paper’ in a mousey gray and it's difficult to see the cursor in that area… unless you set the following.

Giving credit where due, the Tech Support people at 20-20 Technologies passed along the following solution to our customer in San Diego, then Juul forwarded this to me.

How to Change the Layout Tab Crosshair Color

  1. Open Options, then click the System tab.

  2. Click Performance Settings, then click Manual Tune to open the Manual Performance Tuning dialog box.

  3. Empty the check box for Enable Hardware Acceleration.

    Manual Performance Tuning
  4. Black crosshairNow click OK to close the open dialog boxes and you will then have crosshairs in paper space that change color based on the background where they currently fall.

There are other implications with your hardware acceleration, but I guess it depends on your priorities.

Top of page

The Odd Spot

Layer State List… or Checkerboard?

Layer state listThis is, indeed, an odd situation that I cannot get my system to reproduce on demand, but you may have seen it yourself.

The Layer States dropdown list—Home tabLayers panel—typically shows a vertical list of your layer states.

Sometimes you may see, rather than a list, what I can only call a checkerboard arrangement.

Solution

Restore workspaceRestore your Workspace. On the Status bar, click Workspace Switching, then select the workspace that has the check beside it. That will restore the current workspace and restore the Layer State dropdown to a list.

Top of page

The Basics

Word® Text Into Multiline Text

When you have construction notes in a Word® document, there's an easy trick to get it into Mtext.

How to Paste Text from Word® Into Mtext

  1. Highlight, then Copy, the body of text in the Word document.

  2. In AutoCAD, set the desired layer and text style to current.

  3. Launch the Mtext command, then pick two points to define the location of the Mtext.

  4. Right-click in the Editor, then click Paste.

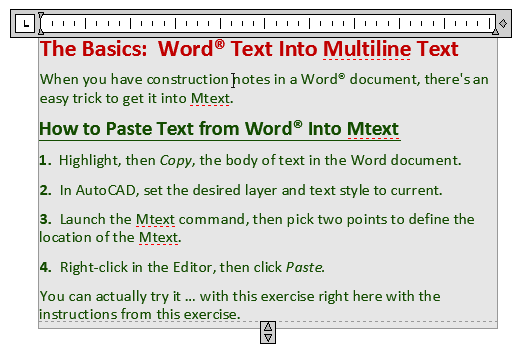

Text from Word in AutoCAD

You can actually try it… with this exercise right here with the instructions from this exercise.

Top of page

Left Field

October 12th—Traditional Columbus Day: Now that I see a map of Christopher Columbus' voyages, I understand the humor in the good Lord's decision to make that my birthday! That guy was all over the map!

Voyages of Columbus

Of course that navigator of the high seas has been the lead character in countless controversies, but he still gets the credit for a greater European awareness of the American continents.

And, with a nod to his navigational experience, he not only got a statue in New York City, but Columbus Circle serves as the point from which navigation measurements are taken when establishing the distance to/from that fair city.
